International Standard GKS (GKS without Collar)
International Standard GKS (GKS without Collar)
International standard spring-loaded test probes (GKS) (inch) Available in two different versions: Standard working stroke (4.3 mm) and longer working stroke (9.3 mm) for dual- stage test fixtures to
International standard spring-loaded test probes (GKS) (inch) Available in two different versions: Standard working stroke (4.3 mm) and longer working stroke (9.3 mm) for dual- stage test fixtures to combine ICT and FCT.
Wireless receptacles enable the wireless connection of test probes using a transfer PCB.
Short / robust test probes stand out due to their robust, compact design.
|
Standard Stroke |
Long Stroke |
|
Wireless Receptacles |
Short/Robust Test Probes (GKS) |

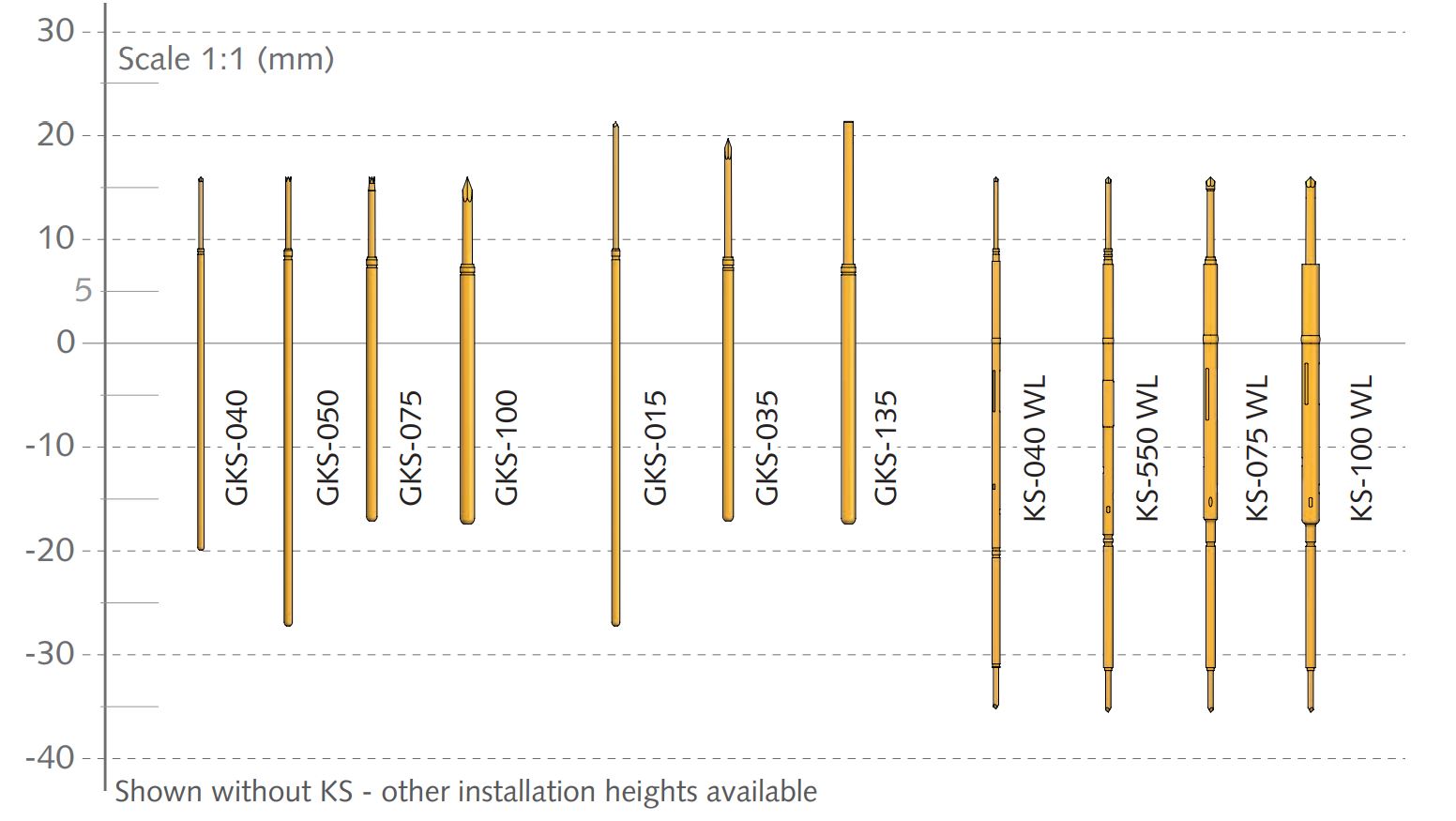

Standard stroke test probes have consistently proven to be reliable ICT/FCT test probes. Depending on the working stroke of the test fixture, or the component or test points to be tested, various installation heights are necessary. These can be achieved by a choice of combinations of test probes and receptacles. Thus, the optimal working stroke with nominal spring force can be achieved.
Test probes come in standard, LH/LP (+ 2.0 mm), and E (+ 5.0 mm) versions, as well as receptacles with various collar heights.
Long stroke test probes are used for combined ICT/FCT test in dual-stage test fixtures.
Wireless receptacles are used to transmit signals over a spring-loaded plunger on a transfer PCB. Thus, a cable is not required.
Short / robust test probes stand out due to their robust, compact design. This makes them suitable for harsh ICT/ FCT applications with limited space available, as well as in larger grid sizes.
